High Speed Wobble Laser Welding Head With Robot Automatic 400Hz

Name: High Speed Wobble Laser Welding Head With Robot Automatic 400Hz
Brand: HanWei
Price: 1 USD

China High Speed Wobble Laser Welding Head With Robot Automatic 400Hz factory

Brand Name : HanWei

Model Number : HW-20-60150

Certification : CE, FDA

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 6000 Set per year

Delivery Time : 5 work days

Packaging Details : Welding head: 9Kg. 39*22*29cm. Wire feeding device: 17Kg. 70*40*65cm. Paper Box.

Product Name : Handheld Welding Head Single Motor

Head Weight : 0.7 Kg

Laser Shape : Line "-"

Laser Frequency : 400 Hz

Welding Bead : 0.5-5mm Adjustable

Cooling Method : Water Cooling

Contact Now

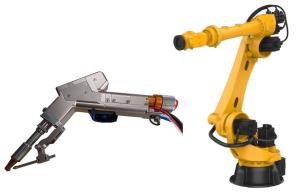

Wobble Laser Welding Head With Robot And Automatic High Efficiency And High Speed Welding

Wobble Laser Welding Description:

Wobble Laser welding is a new and advanced welding method, it is one of important aspects in material processing technology application.

HanWei Fiber Laser Welding Head of Wobble laser welding machine is the perfect solution for laser welding applications, designed to provide high speed and high penetration welding solutions.The welding process is smooth, high welding speed, the device with low failure rate.It also provides excellent reliability with minimal energy consumption and low maintenance cost.

HanWei Laser beam wobble, its referring to the use of beam shaping lenses, oscillated lenses,laser control system to achieve uniform effects on the laser beam spot.

During welding, the welding gun swings left and right at a certain frequency, causing the welding joint to form a certain wave shape, thereby increasing the width and depth of the welding joint.

High Speed Wobble Laser Welding Head With Robot Automatic 400Hz

Handheld Welding Head Specification:

Product Name	Handheld Welding Head
Usable Laser Power	1000W-3000W
Laser Source	Fiber Laser Source
Interface type	QBH
Accessible wave range	1064 nm
Net weight	0.7 kg
Laser head size	216*287 mm
Laser head packing size	392229cm.
Laser head packing gross weight	9kg
Standard single route wire feeding device packing Info	17Kg. 704065cm.
Double route wire feeding device packing Info	30Kg. 794570cm.
Usable laser source	Most of laser source

Handheld Welding Head Features and Advantages:

*Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
*The control system is very easy and requires little prior knowledge on the part of the operator.

*With safety lock function to ensure safety process.

*Internal structure of welding head with extremely simple design, easy to operate and maintenance.

*Adjustable Laser beam range: 0.5 - 5 mm.

*Support standard single route wire feeding.

*Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.

*Laser beam scan mode: Various shape.

*Supply Four welding modes (CW – Continue, Adjust laser out frequency, Argon weld type, QCW mode peak power output).

*Independent Research and Develop all products:Laser head, Control system, Wire Feeding device. Safety lock.

*Digital setting parameters in welding machine interface.

*Support different languages.

*All performance features can be customized to meet individual customer requirements.

Handheld Welding Head Product Show:

Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.

High Speed Wobble Laser Welding Head With Robot Automatic 400Hz

Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.

High Speed Wobble Laser Welding Head With Robot Automatic 400Hz

Laser welding head, control system, monitor, power supply and spare parts. With safety lock function to ensure safety process.

High Speed Wobble Laser Welding Head With Robot Automatic 400Hz

Standard single route wire feeding device

High Speed Wobble Laser Welding Head With Robot Automatic 400Hz

Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.

High Speed Wobble Laser Welding Head With Robot Automatic 400Hz

Paper Box Packing

High Speed Wobble Laser Welding Head With Robot Automatic 400Hz

Welding Sample Show

High Speed Wobble Laser Welding Head With Robot Automatic 400Hz

Nozzle

High Speed Wobble Laser Welding Head With Robot Automatic 400Hz

Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
